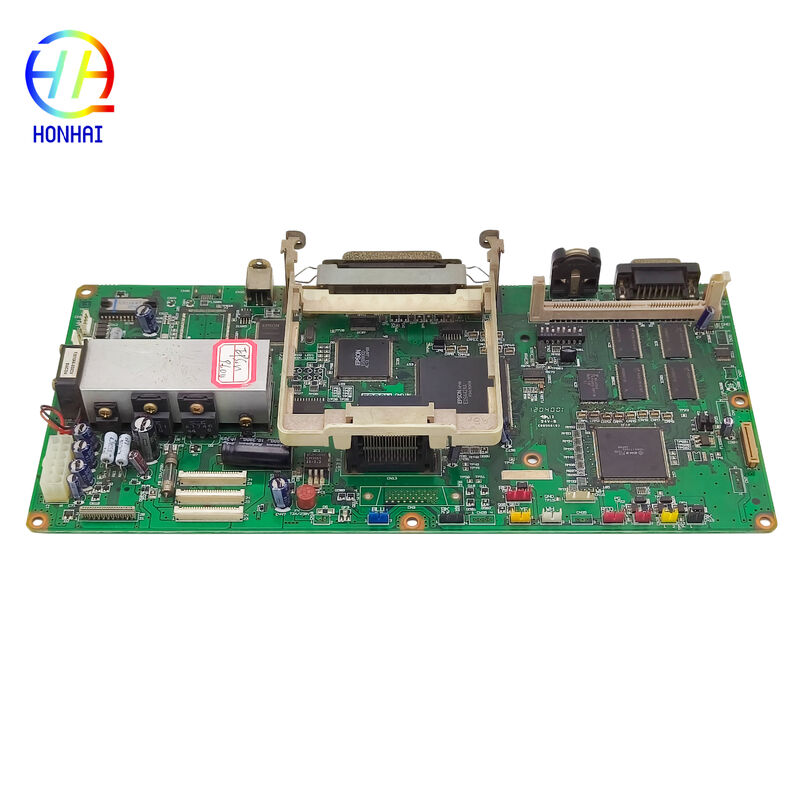

Main board for Epson Stylus PRO 7600 9600 Printer Formatter Board

The Main Formatter Board, designed specifically for large-format printers like the Epson Stylus Pro 7600 and 9600 series, will restore an Epson large-format printer to full operational condition. This board is the "brain" of the printer, processing all print data, managing all communication between the printer and your computer, and controlling all the printer's mechanical functions.

If your Epson printer is experiencing critical failures, such as it won't turn on, frequent system error messages, it cannot recognize a USB or network connection, or is completely unresponsive, the main formatter board has likely failed, and it's time for a replacement. This replacement formatter board has been engineered to be compatible with your Epson wide-format printer so that your printer will continue to provide reliable data processing and will prolong the life of your professional printer equipment. Your high-quality replacement Main Formatter Board will have your Epson printer "back in business" and printing again on time!

Product Specifications:

• Part Name: Main Formatter Board / Motherboard / Logic Board
• Condition: Brand New / Tested Working
• Compatible Printer Models:
  • Epson Stylus Pro 7600 (24-inch Large Format Printer)
  • Epson Stylus Pro 9600 (44-inch Large Format Printer)
• Supported Interfaces: Compatible with standard USB 2.0 and Parallel (IEEE-1284) connections.

Usage & Installation Notes:

1. ⚠️ Power Safety: Always turn off the printer and completely unplug the power cord from the electrical outlet before attempting any disassembly.
2. Static Precautions: Main boards contain sensitive electronic components. Use an anti-static wrist strap or touch a grounded metal object before handling the board to prevent electrostatic discharge (ESD) damage.
3. Document Connections: Before removing the old board, take clear photos of all cable and ribbon connections to ensure accurate reinstallation.
4. Handle with Care: Hold the board by its edges. Avoid touching the integrated circuits (chips) or the gold connector pins.
5. Secure Installation: Ensure the new board is firmly seated in its slots and that all screws are properly tightened. Double-check that every cable is securely reconnected to its corresponding port.
6. Test Run: After reassembling the printer, plug it in and power it on. Print a nozzle check and a test page to confirm that the printer is communicating correctly and functioning as expected.
